1.3 '' OLED Display Module

Kev piav qhia Ib tug zoo nkauj dawb monochrome OLED 1.3 nti 128x64 nraaj OLED display module. Qhov loj me me graphic OLED display module yuav zoo heev li rau koj qhov project tom ntej. Nws packs ib qho zoo npaum li cas ntawm pixels nyob rau hauv ib qho chaw me me. Nws yog kwv yees li ntawm 33.7mm hauv qhov siab ...

Xa kev nug

Ces

Khoom Taw qhia

Kev piav qhia

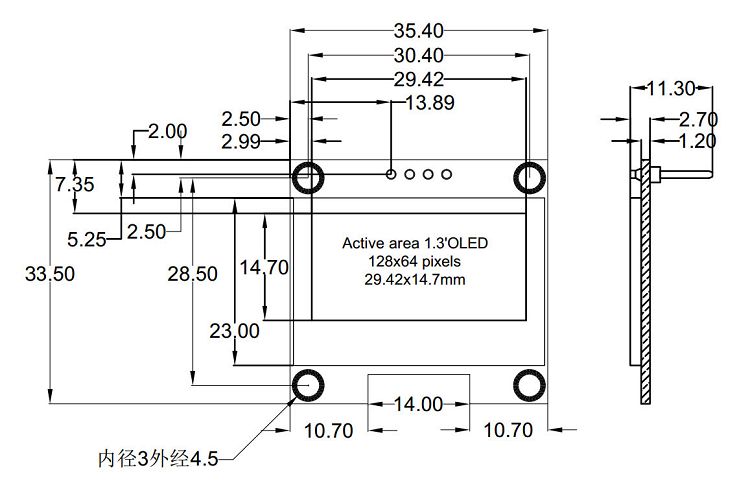

Ib qho zoo nkauj dawb monochrome OLED 1.3 nti 128x64 nraaj OLED display module. Qhov loj me me graphic OLED display module yuav zoo heev li rau koj qhov project tom ntej. Nws packs ib qho zoo npaum li cas ntawm pixels nyob rau hauv ib qho chaw me me. Nws yog kwv yees li ntawm 33.7mm nyob rau hauv qhov siab thiab thiaj li yooj yim muab tso rau hauv pem hauv ntej ntawm 1U neeg rau zaub mov.

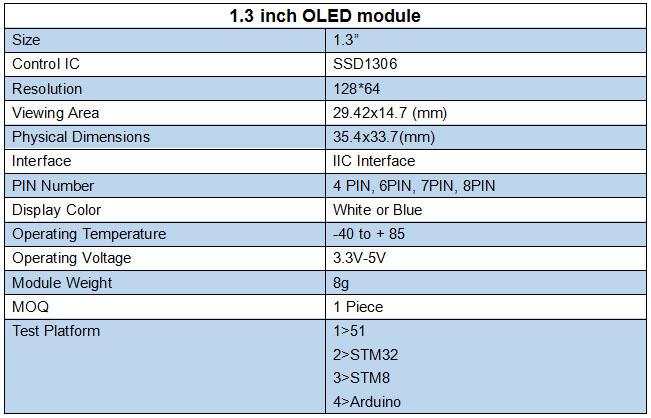

Nta

Interface Txhais

(1) 4 PIN	1> GND / VCC 2> VCC / GND 3> SCL 4> SDA

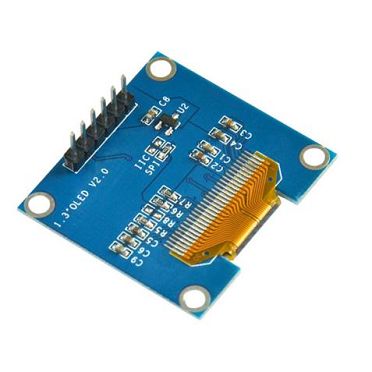

(2) 6PIN	1> GND 2> VCC 3> CLK 4> MOSI 5> Tshawb Fawb 6> DC

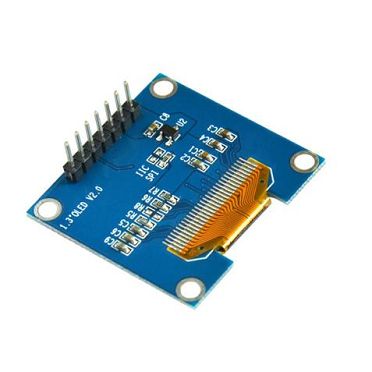

(3) 7PIN	1> GND 2> VCC 3> CLK 4> MOSI 5> Tshawb Fawb 6> DC 7> CS

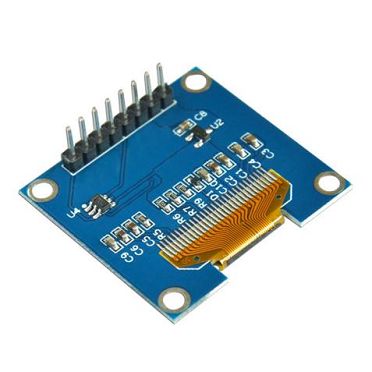

(4) 8PIN	1> GND 2> VCC 3> CLK 4> MOS 5> DC 6> CS1 7> FSO 8> CS2
