OLED
Tsim los ntawm 2012, Shenzhen Enrich Electronics Co., Ltd yog lub chaw tsim khoom thiab kev daws teeb meem ntawm lub ntsej muag lub ntsej muag LCD qhia kev sib koom ua ke R & D, tsim, tsim khoom, muag thiab kev pabcuam. Peb tau cog lus los tsim cov khoom siv monochrome LCD, suav nrog ntu LCD, duab LCD, thiab xim TFT LCD, OLED zaub.
Vim Li Cas Xaiv Peb
Customization Service
Peb muab cov kev pab cuam customization zoo heev, zoo tsim thiab tailoring txhua yam khoom kom tau raws li cov kev cai tshwj xeeb ntawm peb cov neeg, xyuas kom meej tias txhua yam khoom ua kom tiav lawv cov kev xav tau tshwj xeeb.
Kev Tswj Xyuas Zoo
Peb tau siv qhov kev tswj xyuas nruj, qhov twg tag nrho cov khoom tau dhau los ntawm ntau qhov kev sim nruj thiab kev kuaj kev laus ua ntej xa khoom kom ntseeg tau tias lawv ruaj khov, txhim khu kev qha, thiab ua tau raws li cov qauv kev lag luam.
Khoom siv Advanced
Peb lub tuam txhab tau nruab nrog lub xeev-of-the-art ntau lawm chaw thiab chaw ntau lawm, featuring 9 COG bonding kab, 8 LCD module sib dhos kab, 10 backlight los ua ke kab, 6 COB bonding kab, 10 tsis siv neeg TFT module ntau lawm kab, 8 tsis siv neeg polarizer ntau lawm kab, thiab 1 SMT cov kab ntau lawm, kom ntseeg tau cov txheej txheem tsim tau zoo thiab zoo.
Pab neeg tshaj lij
Peb muaj ib pab neeg ua haujlwm paub txog kev paub txog kev ua haujlwm nrog cov kws tshaj lij hla kev sib tw thiab kev muaj peev xwm, muaj peev xwm muab kev sib tham txog kev tshaj lij thiab kev daws teeb meem rau cov neeg siv khoom thoob plaws ntau yam kev lag luam.
Kev cai OLED zaub muaj peev xwm
Active Matrix OLED Zaub (AMOLEDs)
Standard Options:
● Qhov Loj: 1.2 "rau 1.6" kab pheeb ces kaum
● Loj Loj: 5 "mus rau 6" kab pheeb ces kaum
● On-cell kov
Custom Options:
● Npog lub lens
● FPC
● Muaj peev xwm hloov tau
Passive Matrix OLED Zaub (PMOLEDs)
Standard Options:
① Graphic Monochrome Panels
● 0.49" rau 2.8" kab pheeb ces kaum
● Dawb, daj, amber, ntsuab, liab & xiav
② Tag Nrho Xim Vaj Huam Sib Luag
● 0.71″ Rau 1.84″ kab pheeb ces kaum
Kev cai daws teeb meem:
● 16 × 2 thiab 20 × 2 Dot Matrix Character LCD module hloov
● Kev cai xim
● Ib nrab pob tshab
● Kev ua raws cai (FPC tsim, puag ncig substrate npoo)
● Cov nqi qis NRE
OLED Specification
|
Qhov hnyav tag nrho (kg) |
0.0130 |
|
Zaub hom |
60 x 32 po |
|
Interface |
I2C |
|
Qhov tshwm sim |
Dawb ntawm Dub |
|
Loj |
1.3 |
|
Kev sib txuas |
Plug hauv & Soldering FPC |
|
Daim duab Dimension |
9.96 (W) x 8.85 (H) x 1.2 (T) mm |
|
Visual Area |
8.06 x 4.82 mm |
|
Chaw ua haujlwm |
7.06 (W) x 3.82 (H) mm |
|
Dot (Pixel) Loj |
{0}}.098x0.10mm |
|
Dot (Pixel) suab |
{0}}.118x0.12mm |
|
Txuas |
COG + FPC |
|
Hom zaub |
OLED |
|
Kov vaj huam sib luag xaiv tau |
Tsis muaj |
|
Hnub ci nyeem tau |
Tsis muaj |
|
Saib lub kaum sab xis |
Dawb |
|
Brightness (Hom) |
Tsis muaj |
|
Fais fab mov (hom) |
2.8V |
|
Ua haujlwm kub |
-40 degree ~ 80 degree |
|
Cia Kub |
-45 degree ~ 90 degree |
Hom ntawm OLED
Monochrome OLED zaub
Monochromatic OLED cov lus qhia muaj kev sib xyaw ua ke ntawm qhov sib txawv siab, pom dav dav, thiab siv hluav taws xob tsawg nrog ib hom xim emitting. Cov lus qhia no zoo tagnrho rau cov ntawv thov uas xav tau cov duab zoo tshaj plaws thiab lub zog ua haujlwm ntawm ntau yam kev lag luam.
Xim OLED
Cov xim OLED muaj nyob rau hauv cov duab nraaj thiab muab qhov zoo sib xws thiab saib cov ces kaum piv rau cov qauv LCDs. Tau txais cov duab zoo nkauj zoo nkauj nrog rau cov qib dub nplua nuj thiab mus txog 262K tag nrho xim nrog ib qho ntawm peb cov duab zoo OLED.
Cov txiaj ntsig ntawm OLED Displays
Ultra Low Power Consumption
Raws li tus thawj coj OLED cov chaw tsim khoom thiab cov chaw muag khoom, peb tau ua kom pom tseeb ntawm kev siv thev naus laus zis thiab hloov nws mus rau koj lub hom phiaj. Kev cai OLED cov lus tsis xav tau lub teeb rov qab, roj teeb lub zog tsis raug tso rau ntawm cov teeb pom kev zoo. OLED muaj lub roj teeb zoo tshaj plaws thiab muaj kev ntseeg siab txuas ntxiv rau kev siv txuas ntxiv, yog li koj tsis txwv los ntawm lub peev xwm ntawm koj cov zaub.
Tsis xav tau Backlight
Backlit qhia txog roj teeb lub neej thiab cuam tshuam cov xim tiag tiag ntawm cov duab. Kev cai OLED cov lus qhia yog tus kheej illuminating, yog li lawv tsis xav tau lub teeb pom kev zoo uas txhim kho cov zaub zoo thiab roj teeb lub neej.
Saj zawg zog thiab sib zog dua li cov LCDs
Tsis yog txhua qhov kev qhia yog nyob rau theem ua si. Pob tshab OLED cov lus tsis tas yuav tsum muaj ntau yam khoom xws li LCDs ib txwm muaj, lawv yog qee qhov thinnest, lightest, thiab feem ntau portable zaub hauv khw. OLED thev naus laus zis tuaj yeem tsim cov duab uas pwm thiab nkhaus nyob ib ncig ntawm txhua qhov chaw kom ntes koj cov neeg tuaj saib qhov twg koj xav tau tshaj plaws.
Xim tiag
OLED ua rau cov duab muaj sia. Tsis muaj backlight. Txhua pixel emits nws tus kheej pom lub teeb raws li qhov tshwm sim lawv tuaj yeem pom cov qib dub tob thiab cov xim dawb tiag tiag. Qhov no tsim qhov sib piv tsis sib xws thiab kev daws teeb meem uas tsim qhov tseeb tshaj plaws thiab raug saib kev paub uas qhia koj cov tswv yim raws nraim li koj xav li cas thiab tsim lawv.
Superior Viewing Angles
Pob tshab OLED zaub tuaj yeem pom los ntawm txhua tus, txhua qhov chaw. OLED cov ntxaij vab tshaus muaj kev cuam tshuam lub teeb tsawg thiab tso saib cov xim tiag tiag, OLEDs tso saib cov duab zoo ib yam ntawm qhov tsis cuam tshuam, sib luag, 170 degree × 170 degree, saib lub kaum ntse ntse.
Extended Temperature Range
Thaum tshav kub kub dissipation yog tus yuam sij rau kev ntsuas kev ua tau zoo. Lub tshav kub tsim los ntawm kev ua haujlwm ntawm cov zaub yog dissipated los ntawm cov khoom siv kho qhov muag thiab tsis thaiv los ntawm insulating huab cua txheej. Los ntawm kev sau cov cua sov insulating ntawm cov khoom, cov cua sov tuaj yeem hloov mus rau sab nraud.

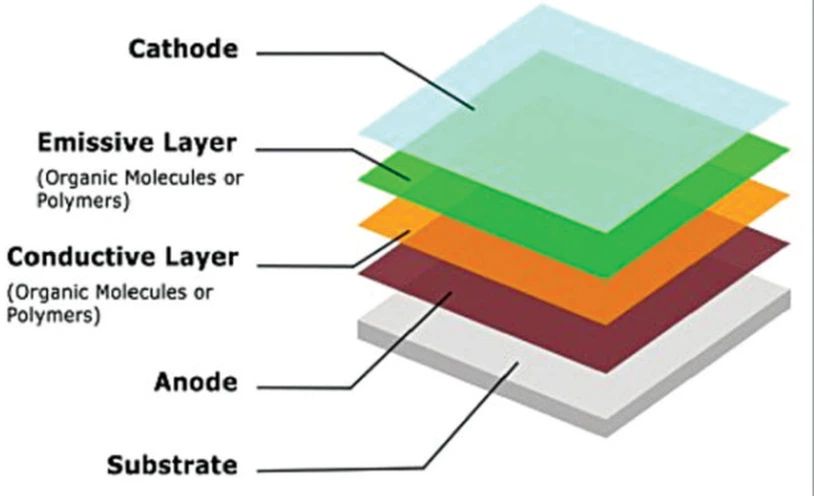

Substrate.Raws li lub hauv paus ntawm OLED, nws yog ua los ntawm cov iav nyias nyias lossis cov ntawv ci.
Anode.Nws tseem hu ua emitter. Nws lub luag haujlwm tseem ceeb yog emit electrons thaum muaj hluav taws xob siv thoob plaws terminals.
Organic Txheej.Cov txheej saum toj no anode hu ua organic txheej. Nws muaj cov conductive polymer ua los ntawm hydrogen lossis carbon molecules.
Txheej Txheej.Cov txheej no yog ua los ntawm cov organic yas molecules thiab pab txav qhov ntawm anode.
Emissive Txheej.Cov txheej no yog ua los ntawm cov khoom siv organic uas txawv ntawm cov siv hauv cov txheej txheem conductive. Nws pab thauj electrons los ntawm cathode.
Cathode.Cathode yog qhov zoo tshaj plaws ntawm OLED zaub. Nws txhaj tshuaj electrons thaum muaj peev xwm sib txawv yog siv thoob plaws terminals.
Kev siv OLED
TV thiab saib
Smartphones thiab Tablets
Wearables
Lub Teeb Vaj Huam Sib Luag
Ntim
Ua siab zoo xa peb cov ntawv pib kos duab, qauv lossis duab; yog tias koj tsis muaj cov ntaub ntawv no, thov qhia rau kuv paub koj lub tswv yim.
Tom qab ntawd peb muab kev daws teeb meem rau koj thiab kwv yees tus nqi. (Qhov loj me yuav tsis cuam tshuam tus nqi kev cai, tab sis yuav cuam tshuam tus nqi tsev.)
Sib tham txog cov ntaub ntawv technical thiab peb muab cov lus qhia meej.
Koj npaj cov nqi kev cai.
Peb tus engineer tsim daim duab OLCD rau koj qhov kev pom zoo hauv 1-3 hnub.
Cov qauv tshiab yuav ua tiav hauv 15-20 hnub.
Tom qab kuaj pom zoo, zoo siab tos txais cov khoom loj.
LCD Production Process Flow Chart
Ua kom zoo, Ua kom yooj yim siv LCD
Daim ntawv pov thawj
